EC Approved LED Projector, Strands Big Energy Raw 9"

Big Energy RAW 9” driving light delivers 13,000 actual lumens in Xperience mode with a beam distance of more than 1 km @ 1 lux, a 5700 K color temperature, and dual output modes with a power draw of 11 W / 147 W. The E-mode is approved under R149 with reference number 20. Built for demanding conditions, it features an IP69K rating, vibration-resistant construction, and is supplied with installation accessories, a 550 mm cable, and DT2-PIN connector for secure installation. Big Energy RAW is also backed by Strands’ 3-year warranty.

Pure performance for demanding driving

Big Energy RAW is developed for drivers who need maximum visibility without unnecessary complexity. With both E-mode and Xperience mode, the light output can be adapted to different driving conditions while maintaining a focused and powerful beam pattern.

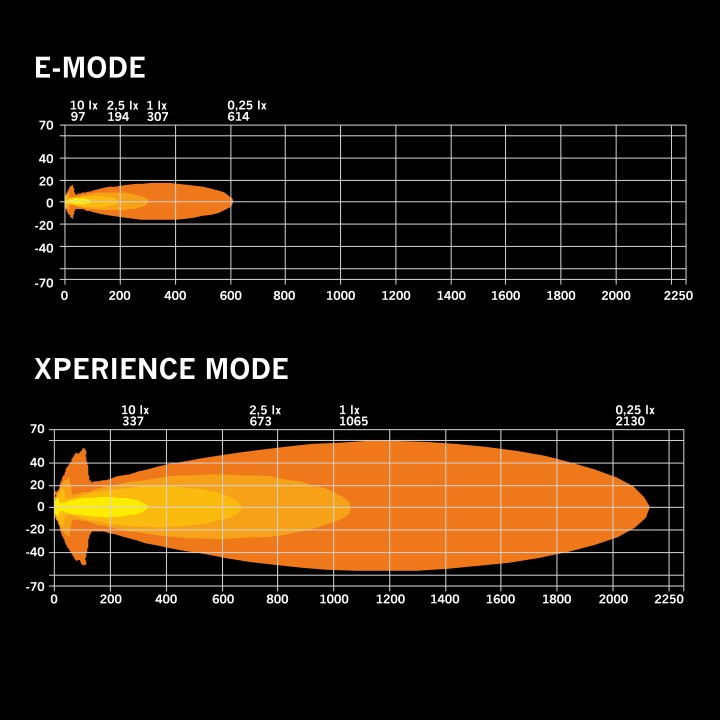

• Xperience mode: Delivers more than 13,000 actual lumens with a beam distance exceeding 1 km @ 1 lux for maximum forward visibility.
• E-mode: Approved under R149 with reference number 20 for compliant road use.
• 5700 K color temperature: Produces a clear and crisp light output designed for improved visibility in dark driving conditions.
• 11 W / 147 W power draw: Flexible performance depending on selected mode.

Built for long-term durability

Big Energy RAW is engineered to withstand harsh environments and demanding daily use. Every detail is designed to increase durability, stability, and long-term reliability.

• IP69K-rated: Maximum protection against dirt and water intrusion.
• Vibration-resistant construction: Designed for stable performance even on rough roads and demanding terrain.
• 3-year warranty: Additional confidence for long-term use.

Optional lens covers for added protection

Big Energy RAW can be equipped with optional yellow or transparent lens covers (Part No. 901036-37), allowing you to adapt both protection and light characteristics to different driving environments.

• Transparent lens cover: Helps protect the lens from stone chips and road debris.
• Yellow lens cover: Softens the light output and can help reduce glare in rain and snow conditions.

Easy and secure installation

This 9” driving light is supplied with the necessary mounting hardware for a straightforward installation process and a stable fitment.

• 550 mm cable: Simplifies connection during installation.
• DT2-PIN connector: Provides quick and reliable electrical connection.
• Screws, bolts, and washers included: Everything needed for mounting is supplied in the package.
