Electric Cable Kit for LED Projectors, Strands Wiring Harness Pro with XBB

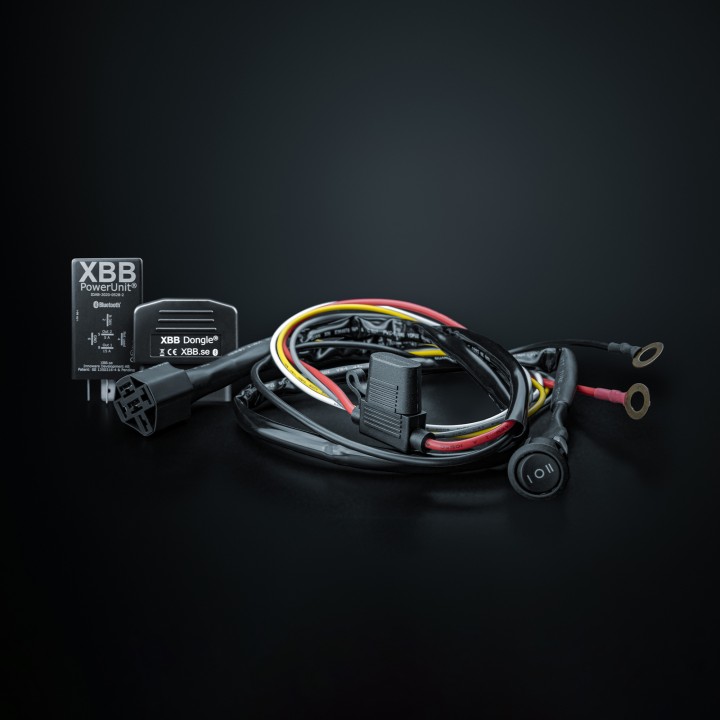

Performance starts here. A premium lighting experience doesn’t end when you’ve chosen your new lamp. To make the most of your lighting, it needs to be installed correctly using the right accessories. That’s why this Strands Pro installation kit combines the XBB Dongle & Power Unit (Part No. 270425) with the Strands Pro XBB PowerUnit Wiring Harness (Part No. 907003)— a complete solution designed to make installing vehicle lighting faster, easier, and more reliable. This kit is designed for users who want a clean and efficient installation of auxiliary lighting.

The Easiest Way to Install Vehicle Lighting

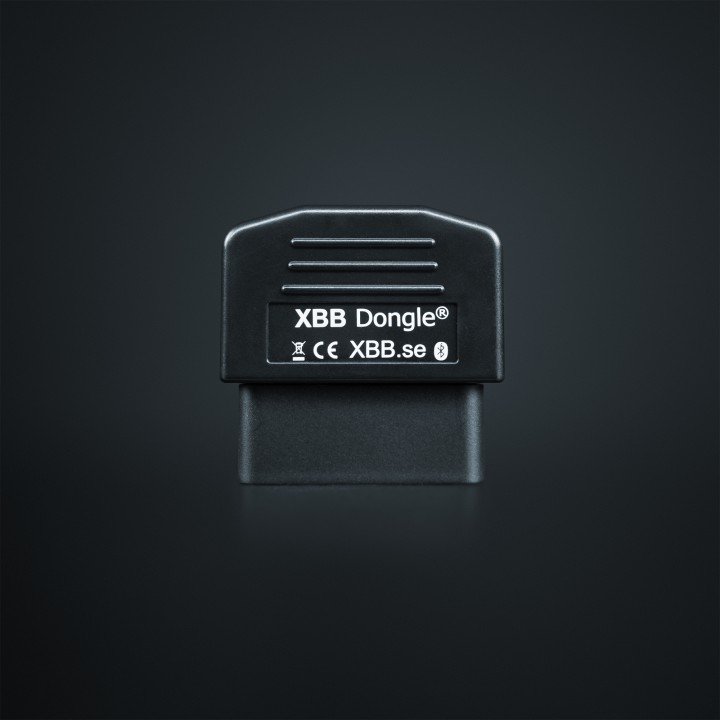

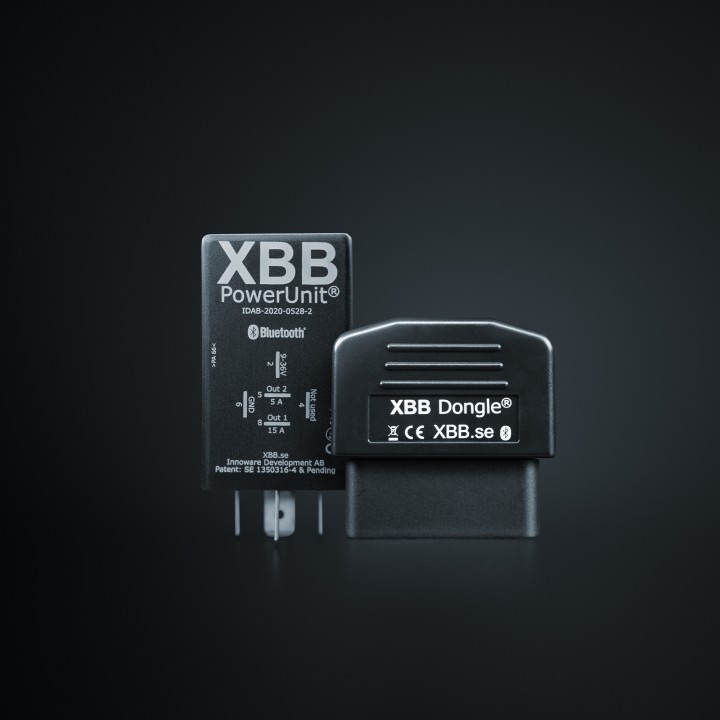

The XBB Dongle & Power Unit system provides a fast and user-friendly way to install vehicle lighting without interfering with the car’s wiring. The dongle connects directly to the vehicle’s OBD port, while the Power Unit communicates wirelessly with the dongle.

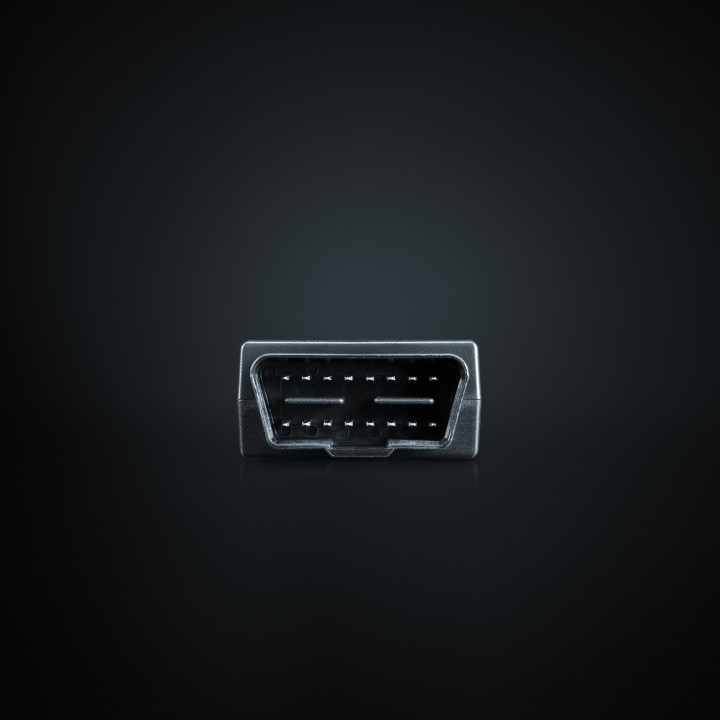

• OBD connection: The dongle plugs directly into the vehicle’s OBD port.
• Wireless communication: Bluetooth 5 communication between the dongle and the Power Unit.
• No interference with vehicle wiring: Installation does not require modifying the car’s electrical system.
• Fault-code protection: Helps avoid fault codes.
• Smartphone setup: Installation is performed through your smartphone.
• Cross-platform compatibility: Works with both Android and iOS devices.

Dual Outputs for Flexible Lighting Control

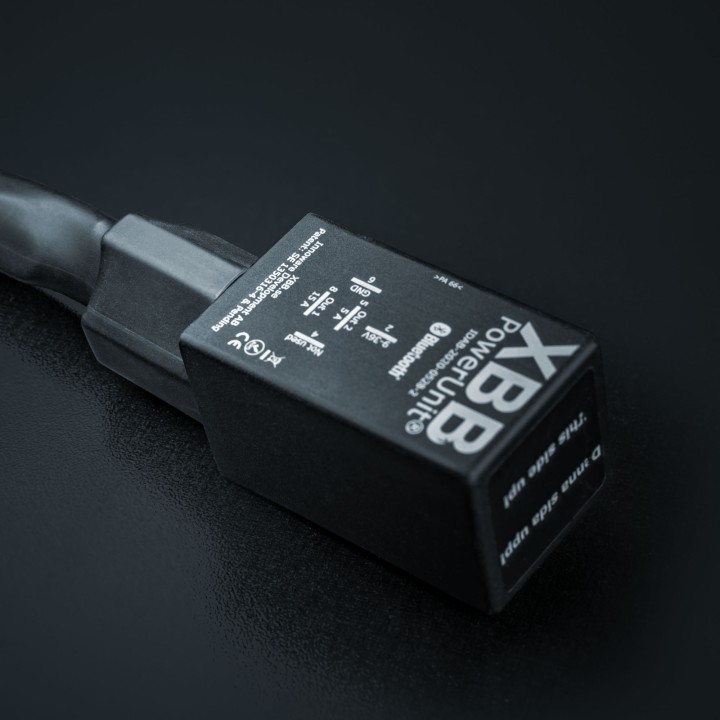

The Power Unit includes two outputs, allowing you to control multiple lighting functions through the same system.

• Output 1: Can be used for lighting, such as driving lights.
• Output 2: Can be used for functions such as position lights.
• Flexible setup: Allows different lighting functions to be connected within the same installation.

Strands Pro Plug-and-Play Wiring Harness

The Strands Pro XBB PowerUnit Wiring Harness connects your lighting to the XBB system through a smooth plug-and-play installation. The harness is designed to simplify setup and ensure that the correct signals are connected to the right outputs.

• Integrated signal cable: Pre-installed in Output 1.
• Integrated position light cable: Pre-installed in Output 2.
• Plug-and-play installation: Designed to connect directly with the XBB system.
• Load compatibility: Suitable for LED bars with a built-in relay or loads up to 15 A / 180 W.

Practical Installation Features

The wiring harness includes practical features designed to make installation and everyday use easier.

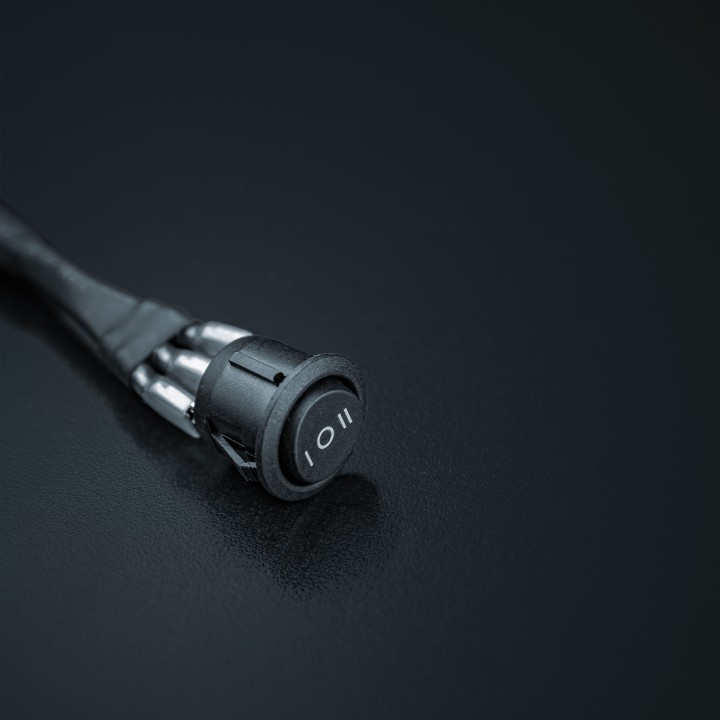

• Position light switch: A pre-mounted switch located in the engine compartment allows you to easily switch the position lights on or off.
• Harness length: The cable measures 700 mm for convenient routing.
• Secure connections: Supplied with three DuraSeal heat-shrink sleeves for durable and protected connections.

Part of the Strands Pro Installation Concept

Strands Pro is a range of cables and accessories specifically designed for Strands products. With this concept, you can be sure you get the best-suited accessories for your Strands lights.

• Designed for Strands lighting: Built to complement Strands products.
• Quality-controlled components: Developed to simplify installation and support long product life.
• Reliable installation: Helps ensure your lighting system performs as intended.

With Strands Pro, performance starts with the installation.
