Electric Cable Kit for LED Projectors, Strands CAN Bus Interface XBB PP CAN FD

Most modern vehicles use a CAN bus system that, among other functions, monitors the vehicle’s lighting. To avoid issues when installing auxiliary lighting, you need an interface that communicates with the CAN bus. In most cases, an XBB PowerUnit and Dongle are used, connected to the vehicle’s diagnostic port.

For those who cannot or prefer not to install anything in the diagnostic port, or for vehicle models that require it, PP-CAN-FD is an alternative that does not require a Dongle. PP-CAN-FD connects directly to the CAN bus system, which requires a higher level of knowledge of the vehicle’s electrical system. For the unit to function, a “recipe” compatible with your vehicle model is required. Compatible models can be found here and select PP-CAN.

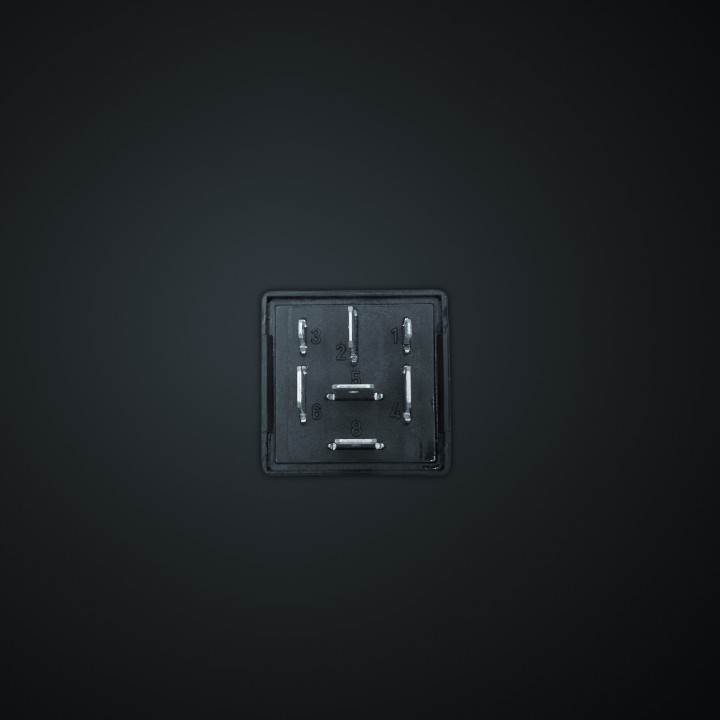

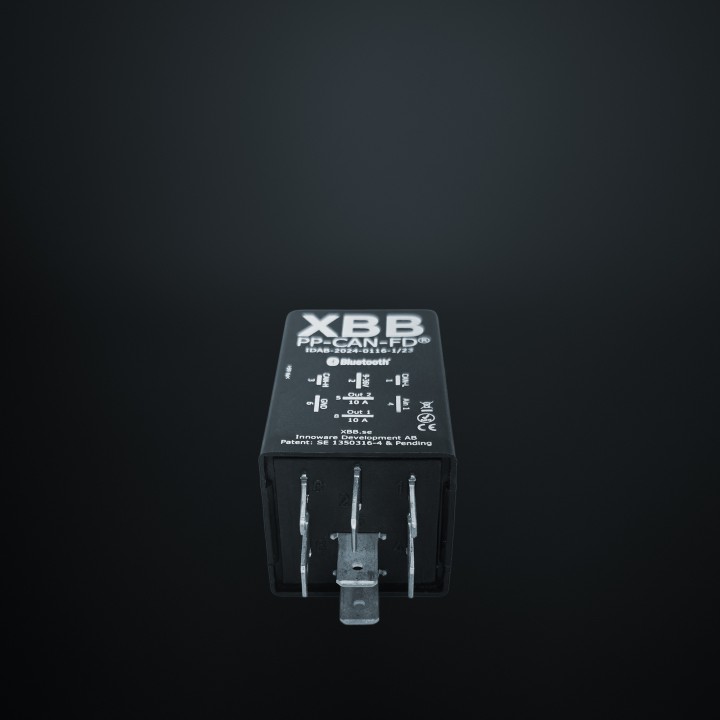

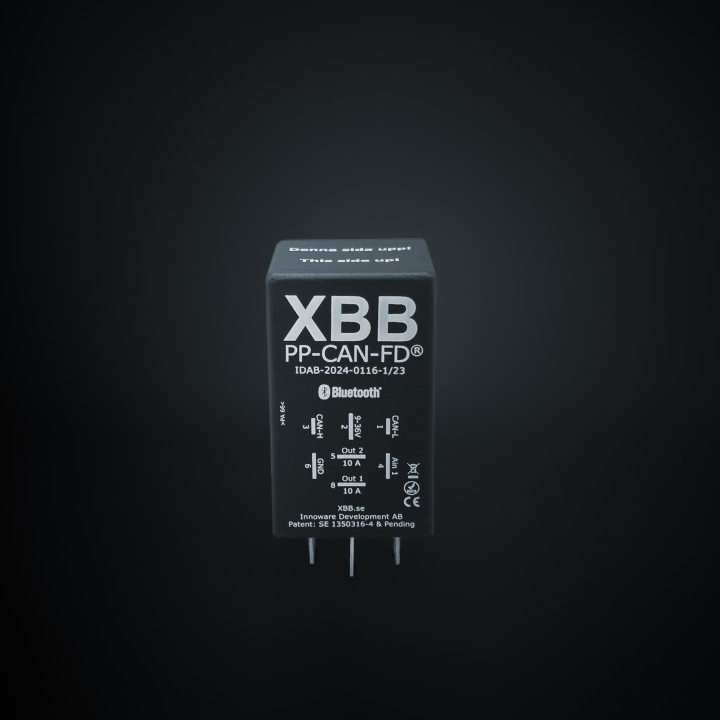

PP-CAN-FD features an analog input on PIN 4 and two 10-A outputs. The outputs can be bridged to 20 A. For additional outputs, up to four XBB PowerUnit units can be connected to the PP-CAN-FD device. It can also be connected to an XBB PowerUnit 6 or an XBB Smart Button. The unit is fully potted and more durable than a standard XBB PowerUnit. If you want a wiring harness for XBB PP-CAN-FD, then use our part number 907052.
