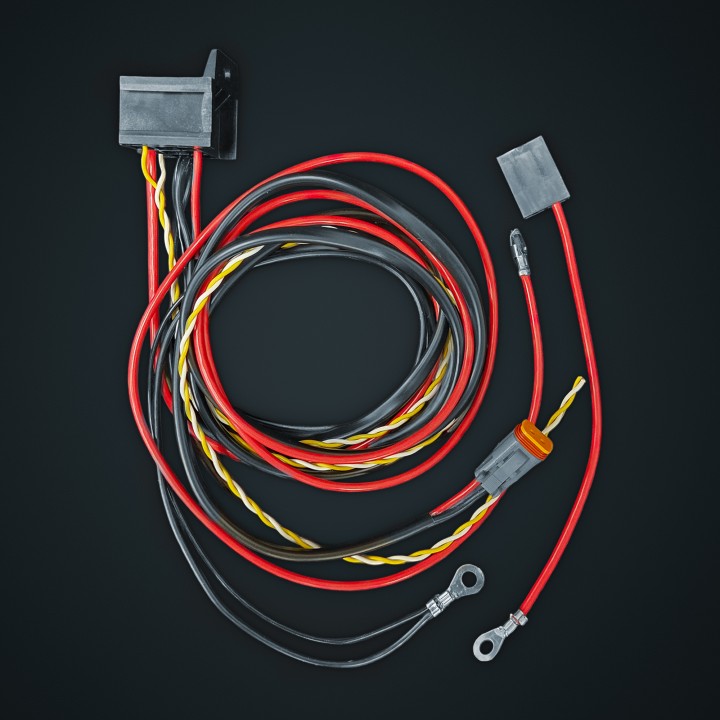

Electric Cable Kit for LED Projectors, Strands Cable Set XBB PP CAN FD

A wiring harness specifically developed for XBB PP-CAN-FD (Part No. 907051). The harness features a DT2 connector rated for up to 150 W and a holder for PP-CAN-FD. It simplifies connection to the CAN bus system: the white wire is for CAN high and the yellow wire for CAN low.

The longest cable in the harness measures 1500 mm, the signal cable is 1000 mm, and the DT cable is 1300 mm. If the light is to be connected using a DT4 connector, a DT4 to DT2 conversion cable can be used (Part No. 270438).
