Lift Kit, Pedders Lift 1.75 Inch, Isuzu D-Max Double Cab 2017 - 2020

Isuzu D-Max 2017-2020 1.75 Inch Pedders Lift Kit

Key features:

• 1.75 Inch lift
• Improved ride comfort
• Increased off-road ground clearance
• Sintered iron piston shocks with large 40mm bore
• Premium grade steel coil springs
• Includes assembled Foam Cell Ezifit struts with new top mounts, bump stops and boots

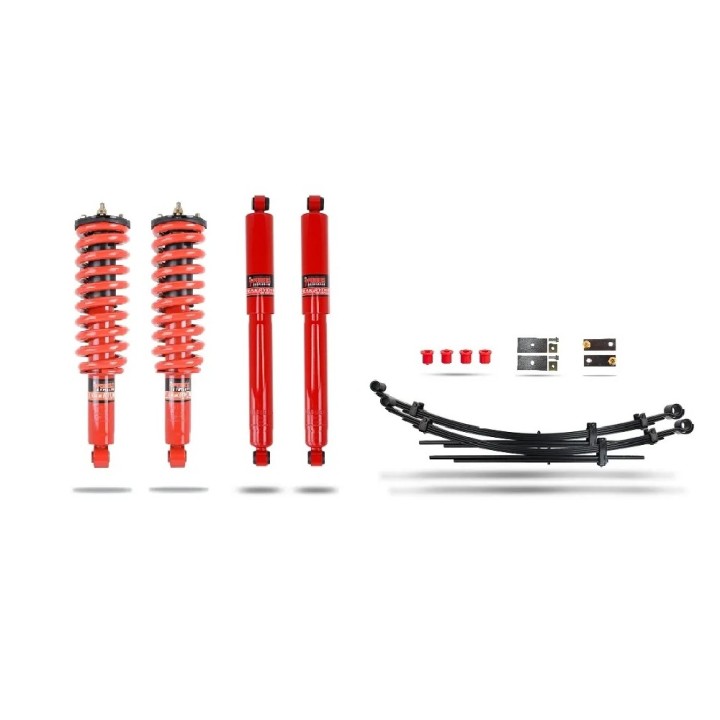

This kit contains:

• 4x SQ U-bolt 62 x 14 x 185mm
• 1x Axle Wedge Kit
• 2x Pedders Trakryder Foam Cell Shock
• 2x Pedders Trakryder Leaf Spring
• 2x Pedders EziFit Foam Strut (280157)
• 1x Urethane Leaf Spring Shackle Bush (4 PKT)

This premium lift kit raises the Isuzu D-Max by approximately 40mm to optimise ground clearance and accommodate larger tyres. It includes front coil springs, rear leaf springs, and fully assembled Foam Cell struts for a direct bolt-in install. The kit improves the unladen ride quality by softening the rear suspension compared to the standard setup, reducing harshness on rough surfaces. It is designed primarily for vehicles that do not carry heavy loads regularly. For continuous heavy use, a heavy-duty option is recommended.

This kit maintains the vehicle's original load carrying capability while enhancing comfort and stance. Fitment does not require spring compressors or reuse of old parts as the struts are pre-assembled. Adding front accessories such as bull bars or winches may affect final ride height and require different springs.
