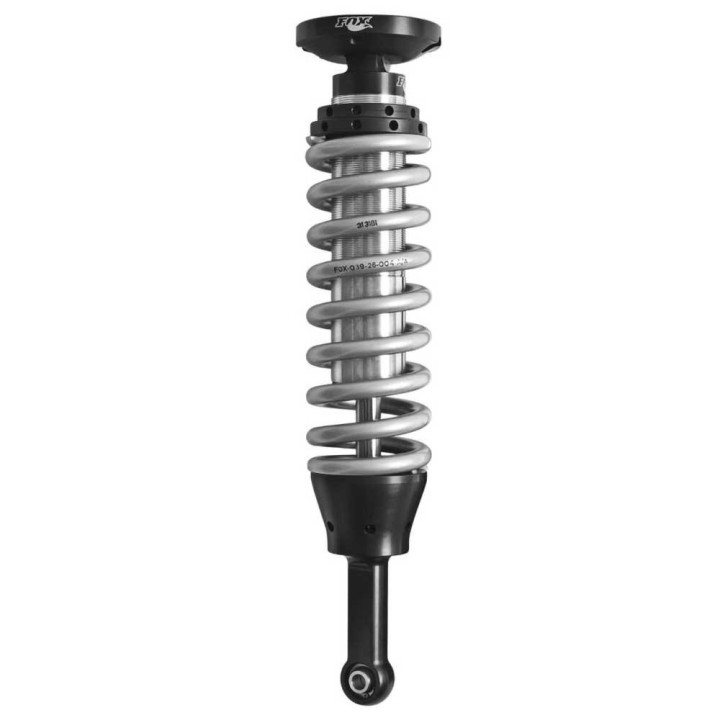

Front Nitro Coilover, FOX Factory Race 2.5 IFP Lift 0-3 Inch, Chevrolet Avalanche 1500 2007 - 2013, Chevrolet Silverado 1500 / S

• Body: 2.5" smooth bore zinc plated seamless steel body
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Internal IFP mono-tube design separates shock oil from the high-pressure nitrogen
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hardened NitroSteel® Steel carbon shafts
• Piston: 6061-T6 hard-anodized, high flow aluminum piston
• Valving: Application specific valving to maximize performance
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Adjuster: Ride height preload ring

Dimensions:

• Extended: 20.55"
• Compressed: 15.26"
• Travel: 5.29"

Mounts:

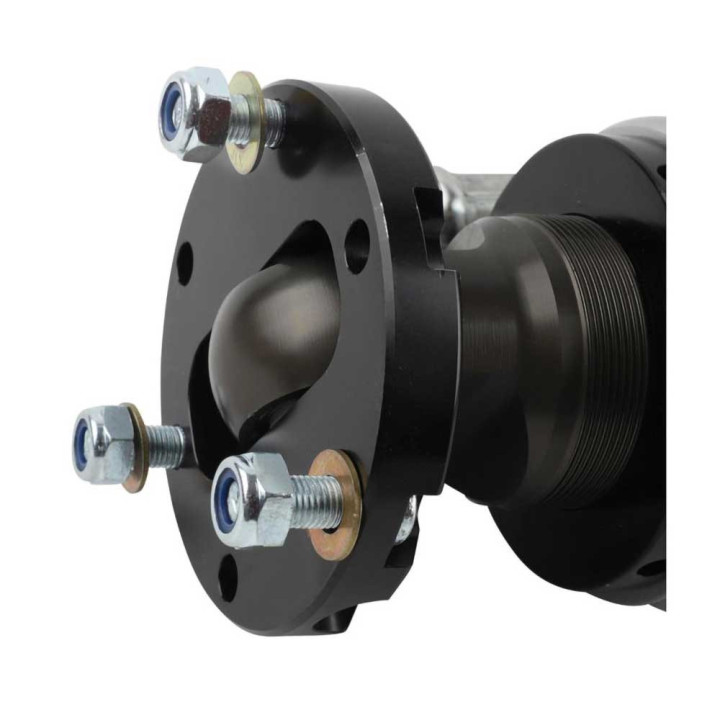

• Top mount: oem
• Bottom mount: bar pin

Notes:

• Requires upper control arm
• For GMC Sierra 1500 does NOT fit magnetic suspension
