Electric Cable Kit for LED Projectors, Lazer Lamps Four-Lamp with Splice, 2-Pin, Superseal, 12V

Name: Electric Cable Kit for LED Projectors, Lazer Lamps Four-Lamp with Splice, 2-Pin, Superseal, 12V
Brand: Lazer Lamps
SKU: 8230-12V-SP
Price: 90.75 EUR
Availability: BackOrder

Lazer Lamps

SKU: 8230-12V-SP

€90.75

Tax included

ⓘ 75,00 € (Without 21% VAT)

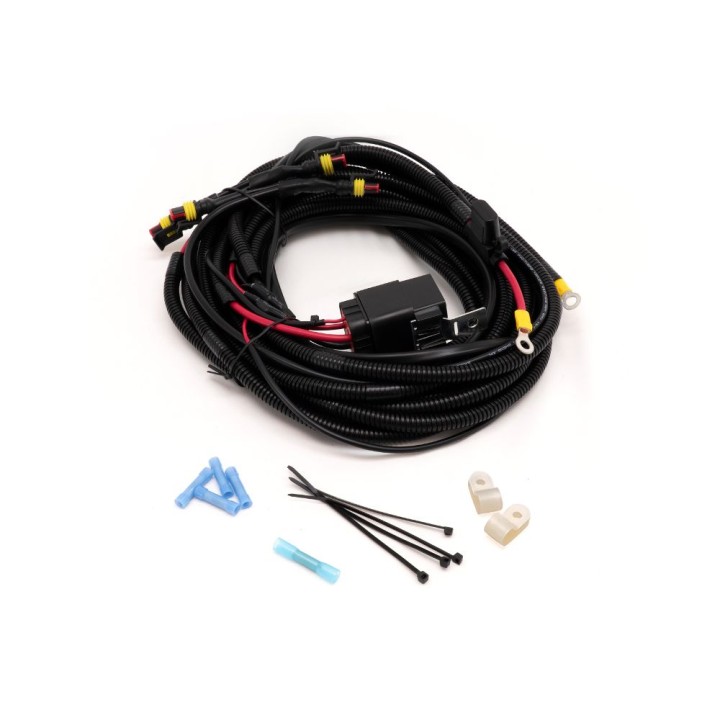

Four-Lamp Wiring Kit for Lazer driving lights (2-Pin, Superseal connections) 1.5m / 6.5m cable lengths Includes 12V relay and 35 amp fuse Relay holder approved to IP53 when mounted in a vertical (upright) orientation 2-pin Superseal connections Allows for operation of lights in parallel with standard high beam lights Conduit cable sections for added protection within engine bay

Backorder

Do you need consulting?

Get in touch with our experts!

+40 732 855 227

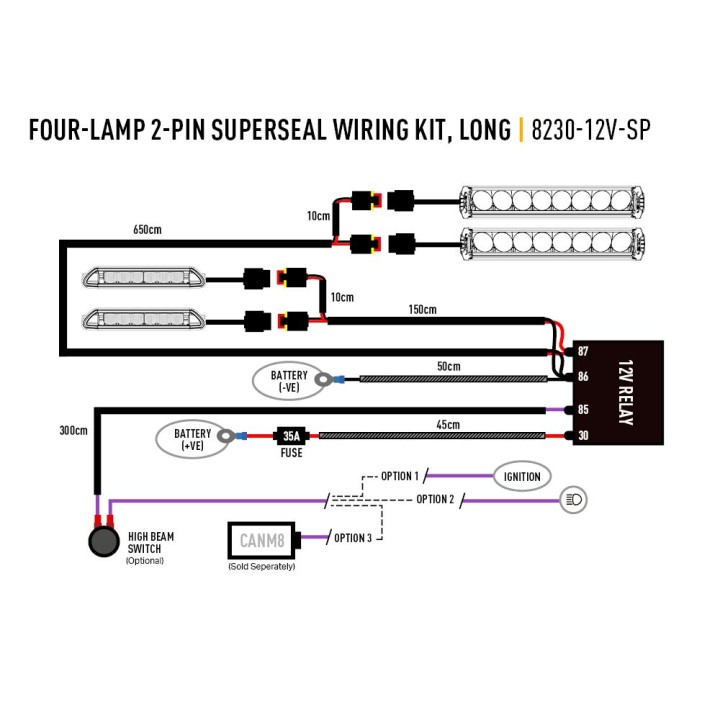

The ideal solution for wiring four Lazer high performance LED lights, most commonly on pick-up trucks where the requirement is for 2x lights at the front of the vehicle, and 2x lights on the roof/sports bar. Only suitable where lights without additional position light function are being used. The setup is quick, easy, and reliable with 2-pin superseal connection and no configuration procedures. The kit features a 12V relay, 35A fuse, a battery terminal at one end, and 1.5m and 6.5m of flex on the lamp cables, and allows for the operation of Lazer products in parallel with the standard high beam driving lights on your vehicle. All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system. Compatible with: ST Evolution (All Products) Triple-R 750 Elite Triple-R 850 Elite Triple-R 1000 Elite Linear-6 (Std / Elite) Linear-12 (Std / Elite) Linear-18 (Std)
