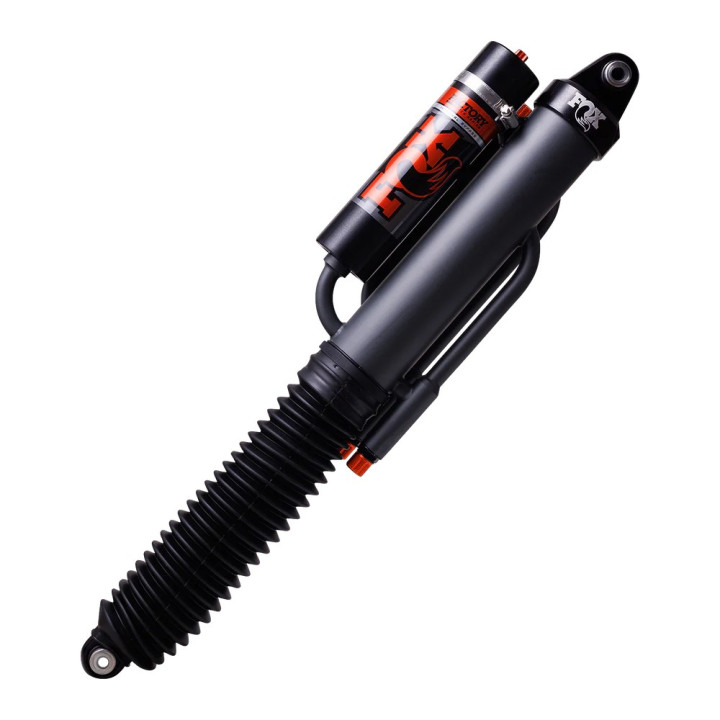

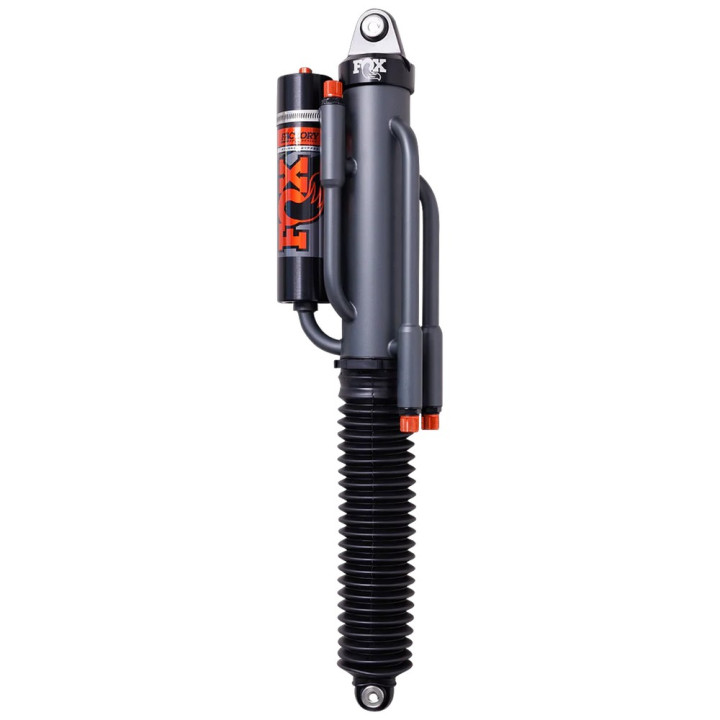

Rear Nitro Shock Absorber, FOX Factory Race 3.0 Lift 0-1 Inch, Ford F-150 2010 - 2014

• Body: 3.0" Smooth bore and honed seamless alloy body
• External Reservoir 2.5" Smooth bore and honed seamless alloy reservoir
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" 17-4 H900 stainless steel hard-chrome plated
• Piston: 6061-T6 hard-anodized, high flow aluminum piston
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal Optional high temperature Viton seals
• Bearing: PTFE-lined, heat-treated, alloy steel spherical

Dimensions:

• Extended: 29.35"
• Compressed: 17.93"
• Travel: 11.42"

Mounts:

• Top mount: eyelet
• Bottom mount: eyelet

Notes:

• Fits SVT models ONLY
