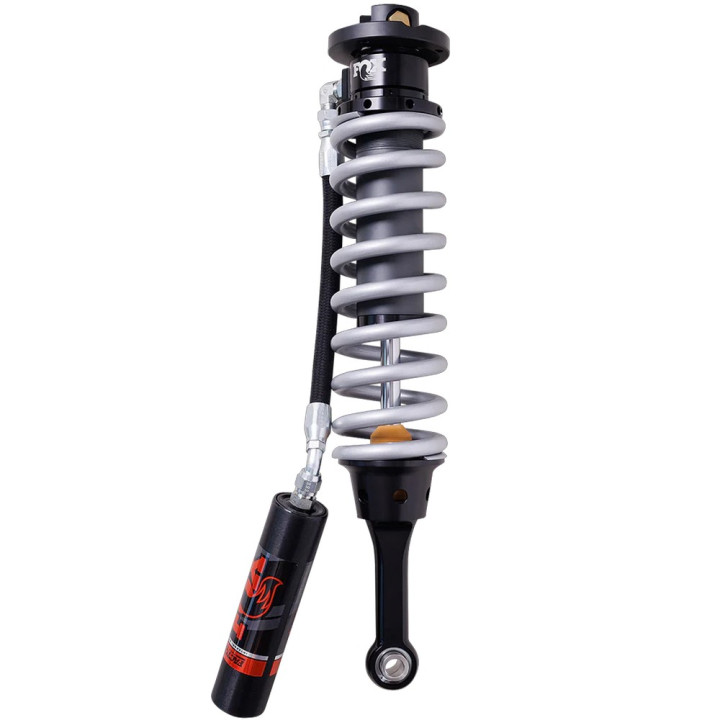

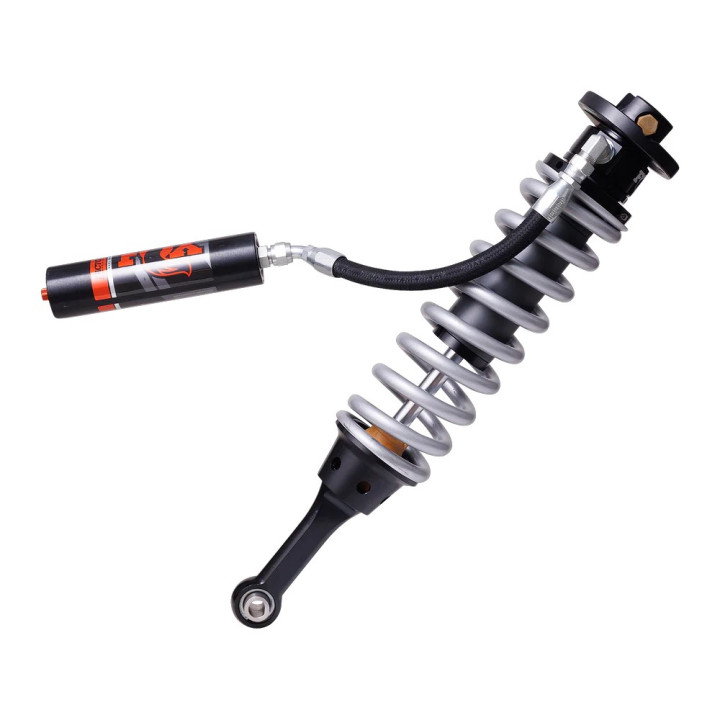

Front Nitro Coilover, FOX Factory Race 3.0 Reservoir Internal Bypass Adjustable Lift 0-2 Inch, Ford F-150 2010 - 2014

• Body: 3.0" Smooth bore and honed seamless alloy body
• External Reservoir 2.5" Smooth bore and honed seamless alloy reservoir
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Spring: Application specific, adjustable 3.625 Eibach® racing springs
• Shaft: 7/8" 17-4 H900 stainless steel hard-chrome plated
• Piston: 6061-T6 hard-anodized, high flow aluminum piston
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal Optional high temperature Viton seals
• Bearing: PTFE-lined, heat-treated, alloy steel spherical

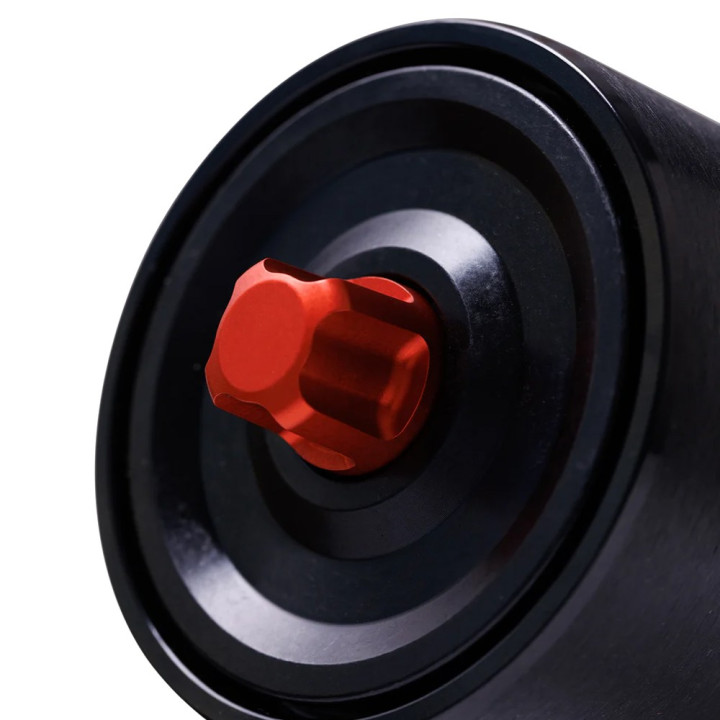

• Adjustments: Ride-height/spring preload ring

Dimensions:

• Extended: 27.97"
• Compressed: 20.44"
• Travel: 7.53"

Mounts:

• Top mount: oem
• Bottom mount: eyelet

Notes:

• Fits SVT models ONLY
