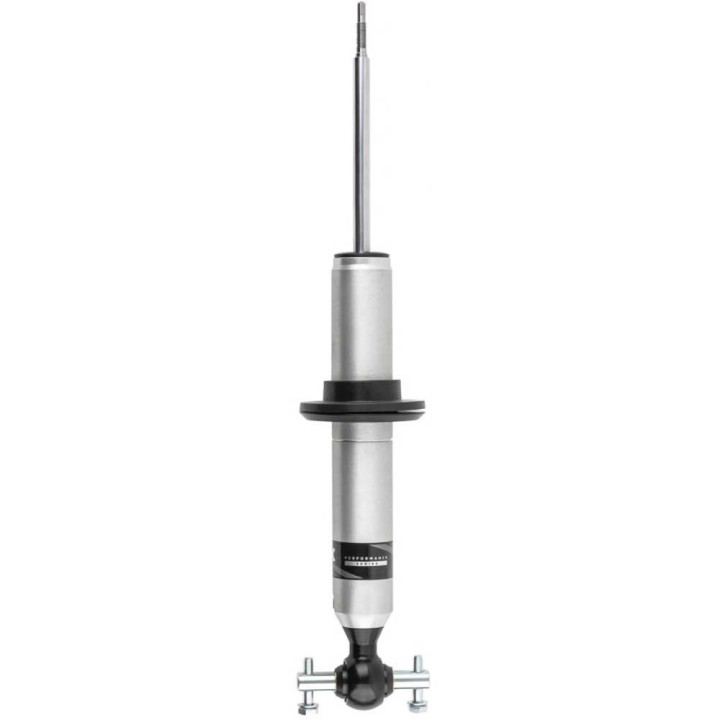

Front Nitro Snap Ring Coilover, FOX Factory Performance 2.0 IFP RWD Lift 0-2 Inch, Ford F-150 2015 - 2020

• Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift
• Spring: Works with stock and aftermarket springs
• Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Internal IFP mono-tube design separates shock oil from the high-pressure nitrogen
• Body Plating: Clear-anodized for a durable finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Bearing: Large diameter, heavy-duty spherical

Dimensions:

• Extended: 21.40"
• Compressed: 16.03"
• Travel: 5.37"

Mounts:

• Top mount: oem
• Bottom mount: bar pin

Notes:

• Fits RWD models ONLY
• Springs not included
