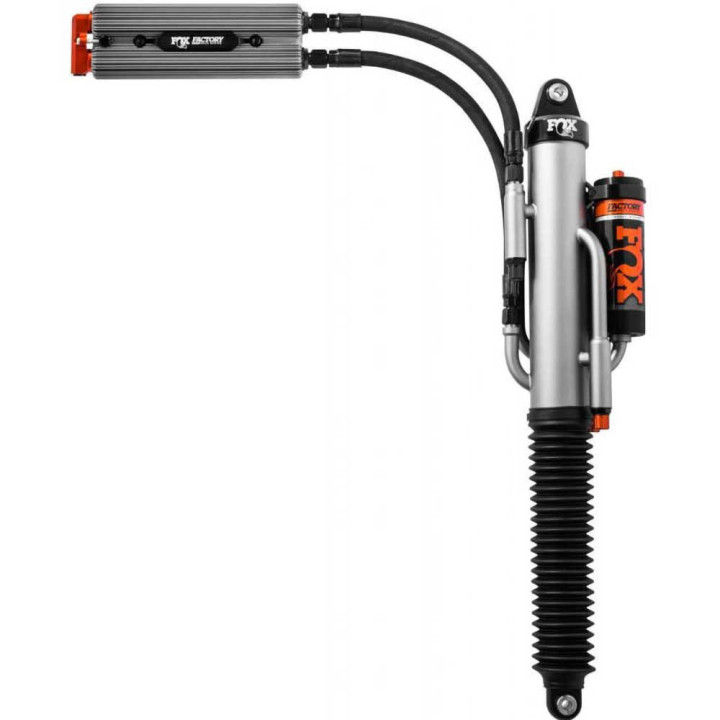

Rear Nitro Shock Absorber, FOX Factory Race 3.0 Quick Adjust Bypass Lift 0-1 Inch, Ford F-150 2017 - 2020

• Body: 3.0" steel body new, proprietary coating for improved durability

• Reservoir: hard anodized extruded aluminum finned remote reservoir with Recirculating Reservoir Bridge
• Components: Hard anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" 17-4 H900 hard chrome plated stainless steel
• Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
• Valving: Specific for Gen 2 Raptor to maximize performance and comfort
• Oil: JM92 Advanced Suspension Fluid
• Bearing: Spherical, PFTE-lined, heat-treated steel
• Adjustments: Quick Adjust Bypass (QAB) adjusters

Dimensions:

• Extended: 31.15"
• Compressed: 18.88"
• Travel: 12.27"

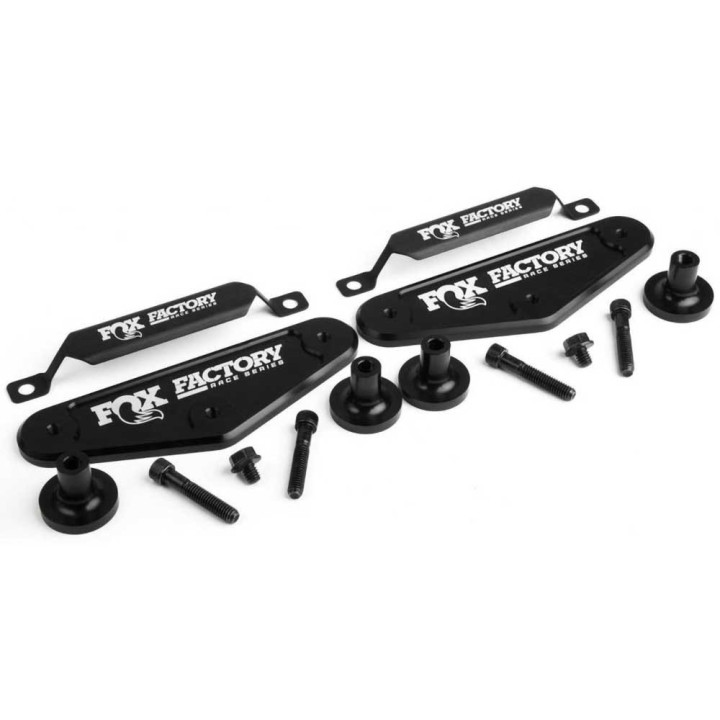

Mounts:

• Top mount: eyelet
• Bottom mount: eyelet
