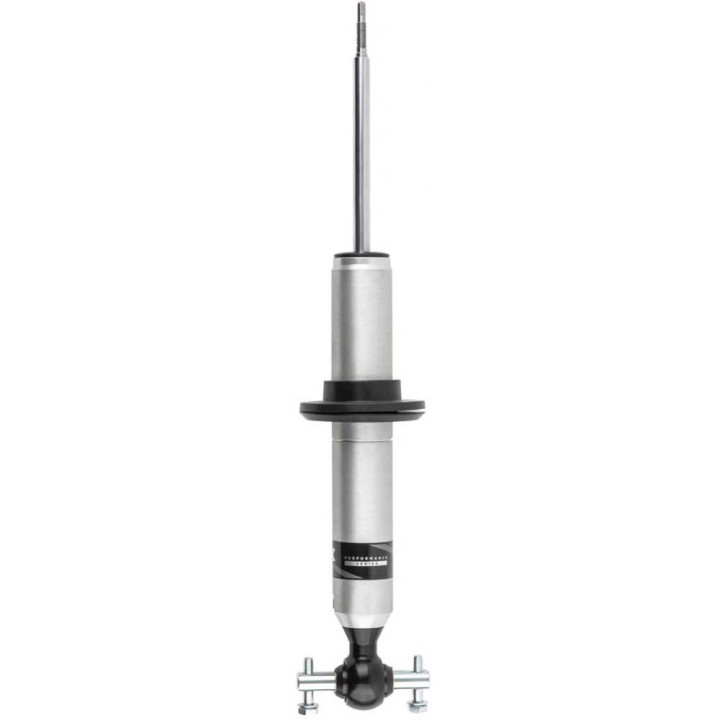

Front Nitro Snap Ring Coilover, FOX Factory Performance 2.0 IFP RWD Lift 0-2.5 Inch, Ford F-150 2021 - Present

• Three predetermined preload settings allow a choice of 0”, 1” or 2” of lift
• Spring: Not included
• Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
• Body Plating: Clear-anodized for a durable finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Bearing: Large diameter, heavy-duty spherical

Dimensions:

• Extended: 20.73"
• Compressed: 15.48"
• Travel: 5.25"

Mounts:

• Top mount: oem
• Bottom mount: bar pin

Notes:

• Fits RWD models ONLY
