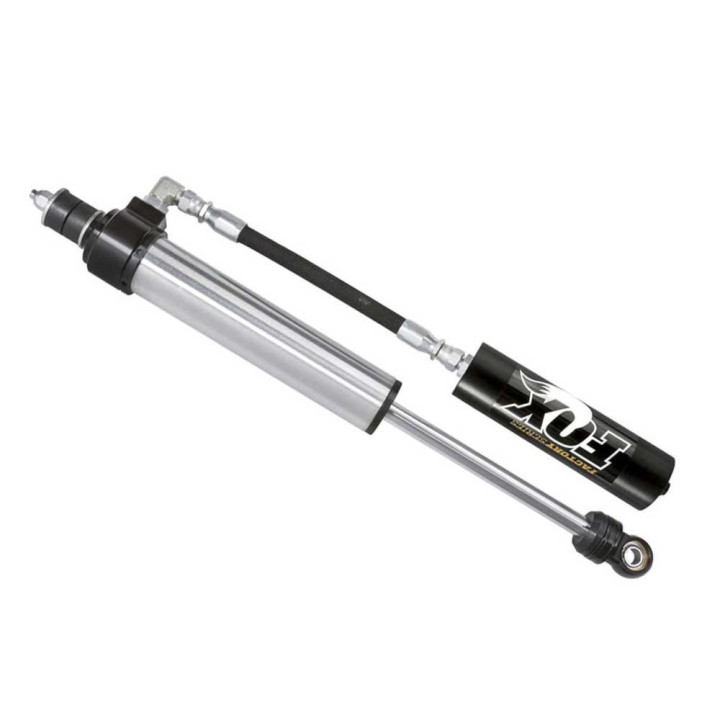

Front Nitro Shock Absorber, FOX Factory Race 2.5 Reservoir Lift 4-6 Inch, Ford F-250 / F-350 2017 - Present

• Body: 2.5" smooth bore zinc plated seamless steel body
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• Reservoir: 2.5" Smooth bore and honed seamless alloy reservoir
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bearing: PTFE-lined, heat-treated, alloy steel spherical

Dimensions:

• Extended: 26.94"
• Compressed: 16.89"
• Travel: 10.05"

Mounts:

• Top mount: stem
• Bottom mount: eyelet

Notes:

• Fits 4WD models ONLY
