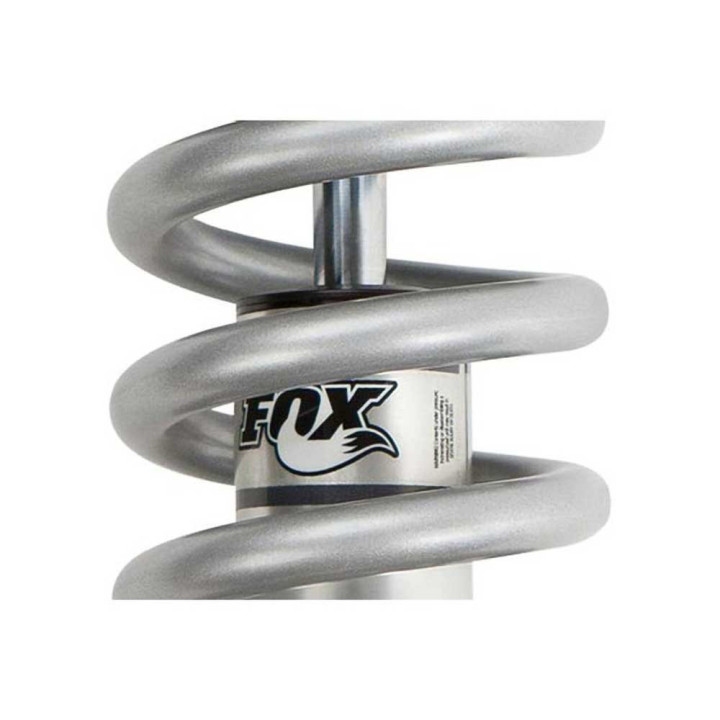

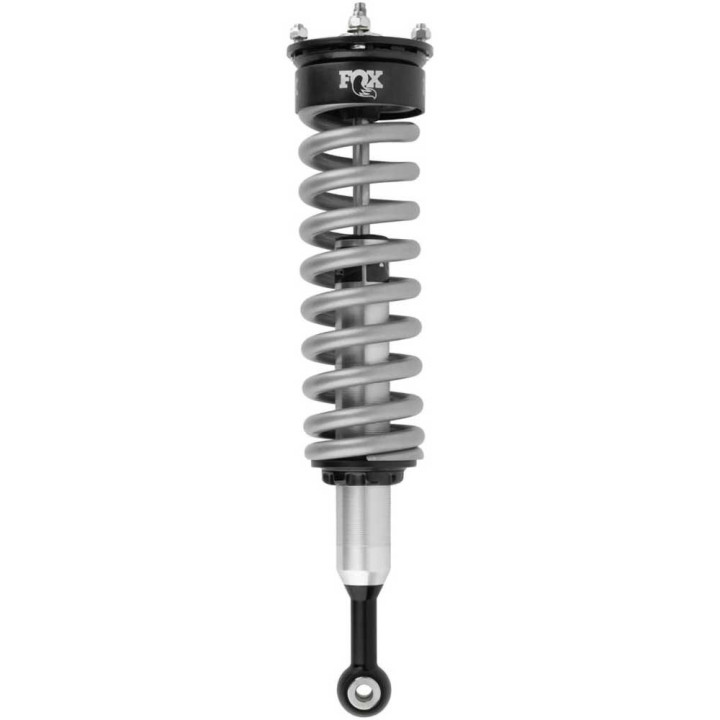

Front Nitro Coilover, FOX Factory Performance 2.0 IFP Lift 2-3 Inch, Ford Ranger 2019 - 2022

• Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Body Plating: Clear-anodized for a durable finish
• Internal IFP mono-tube design
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical
• Adjustments: Ride height preload ring

Dimensions:

• Extended: 20.43"
• Compressed: 16.04"
• Travel: 4.39"

Mounts:

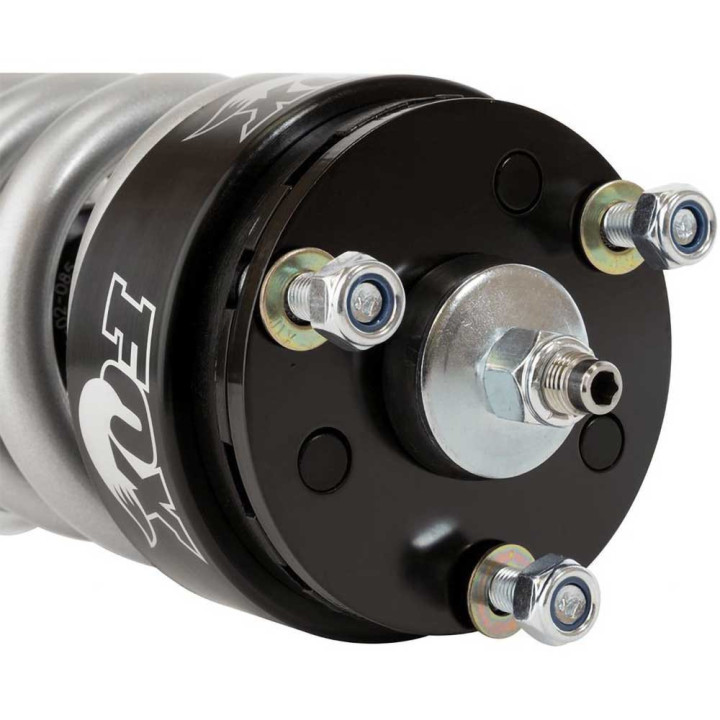

• Top mount: oem
• Bottom mount: eyelet
