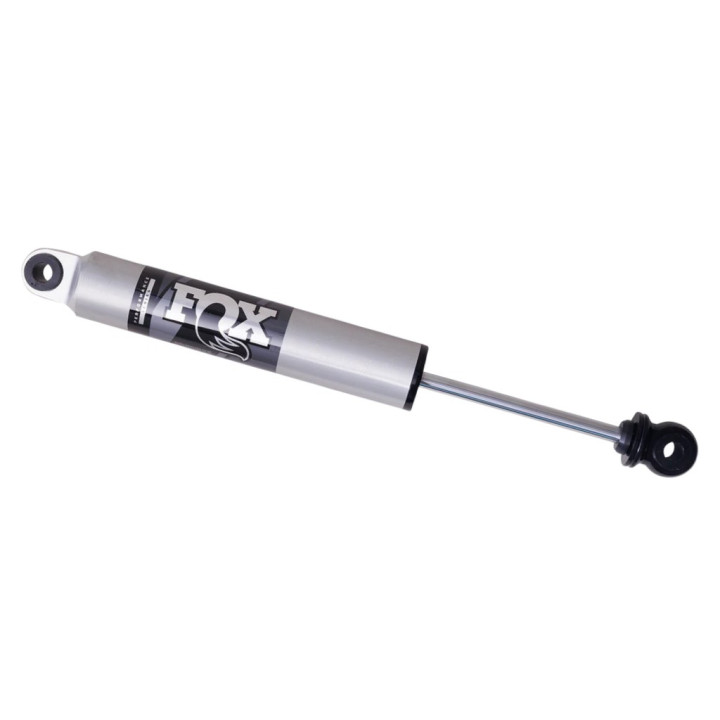

Rear Nitro Shock Absorber, FOX Factory Performance 2.5 IFP Lift 1.5-2.5 Inch, Ford Ranger 2023 - Present

• 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Clear-anodized for a durable finish
• Internal IFP mono-tube design
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow piston design
• Application specific valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Quiet nitrile rubber allows for increased suspension articulation

Dimensions:

• Extended: 28,12"
• Compressed: 17,89"
• Travel: 10,23"

Mounts:

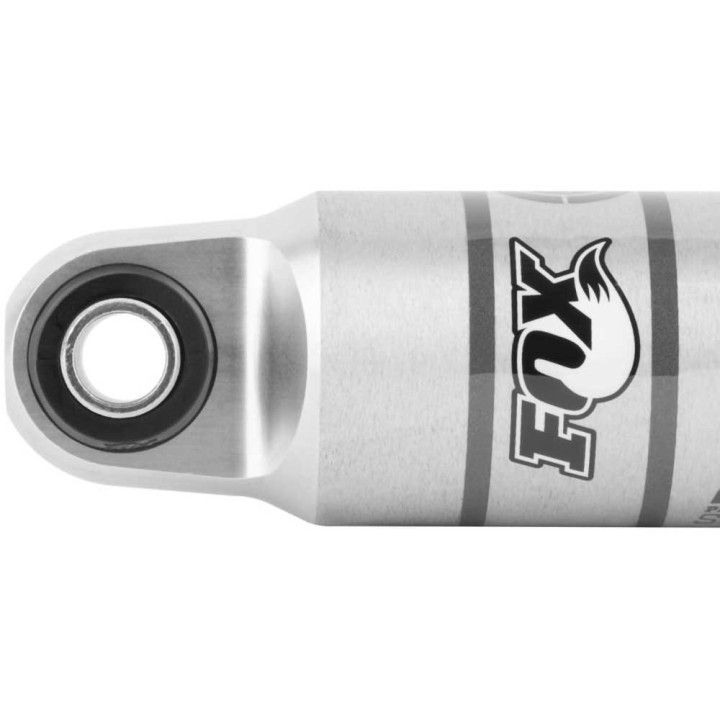

• Top mount: eyelet

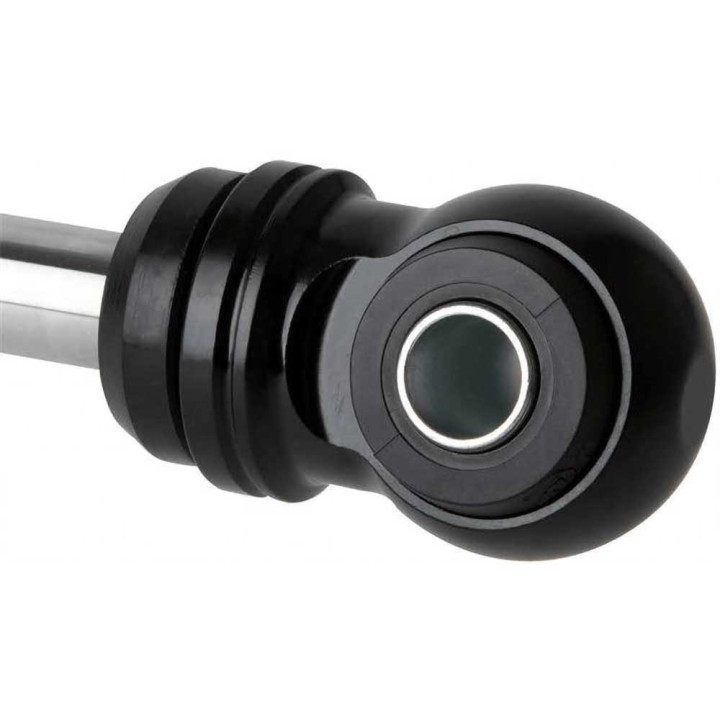

• Bottom mount: eyelet
