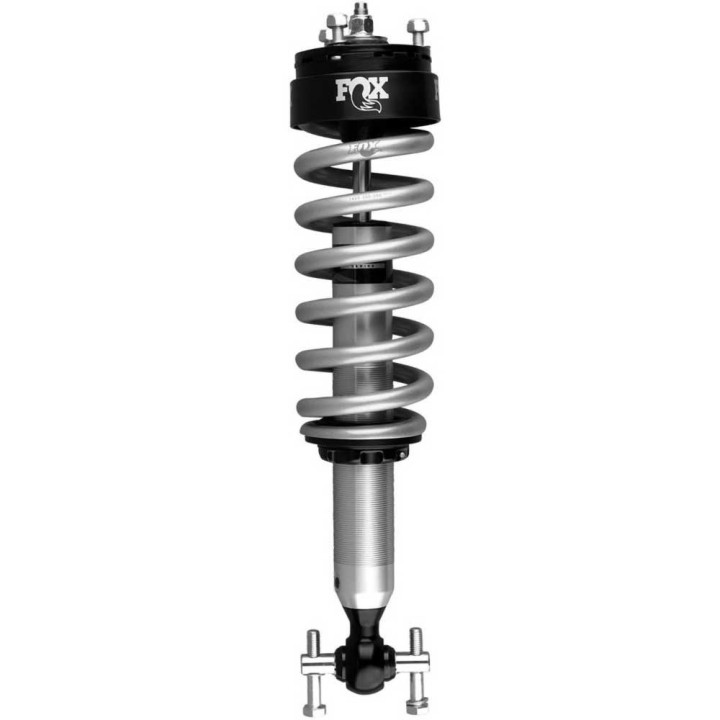

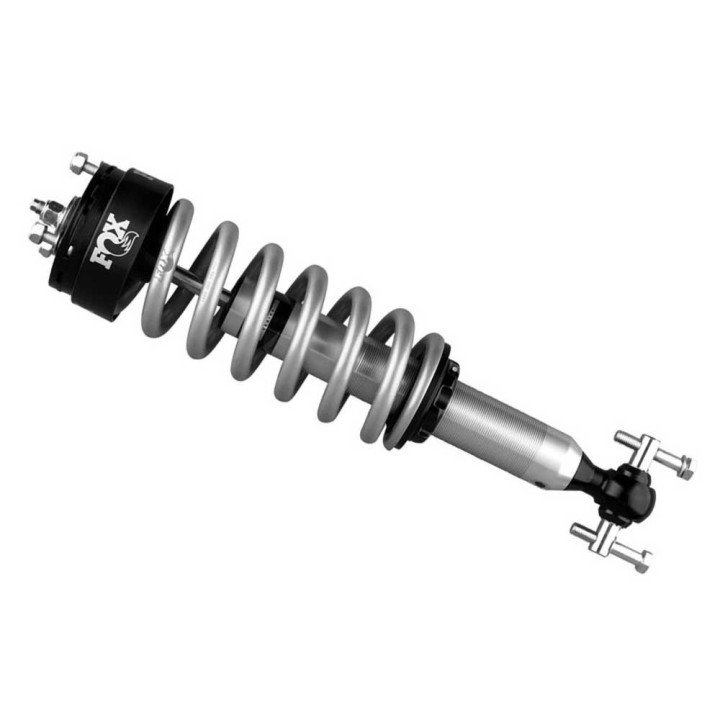

Front Nitro Coilover, FOX Factory Performance 2.5 IFP Lift 0-3 Inch, Ford Ranger 2023 - Present

• Body: 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Internal IFP mono-tube design
• Body Plating: Clear-anodized for a durable finish
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical

Dimensions:

• Extended: 20,50"
• Compressed: 15,30"
• Travel: 5,20"

Mounts:

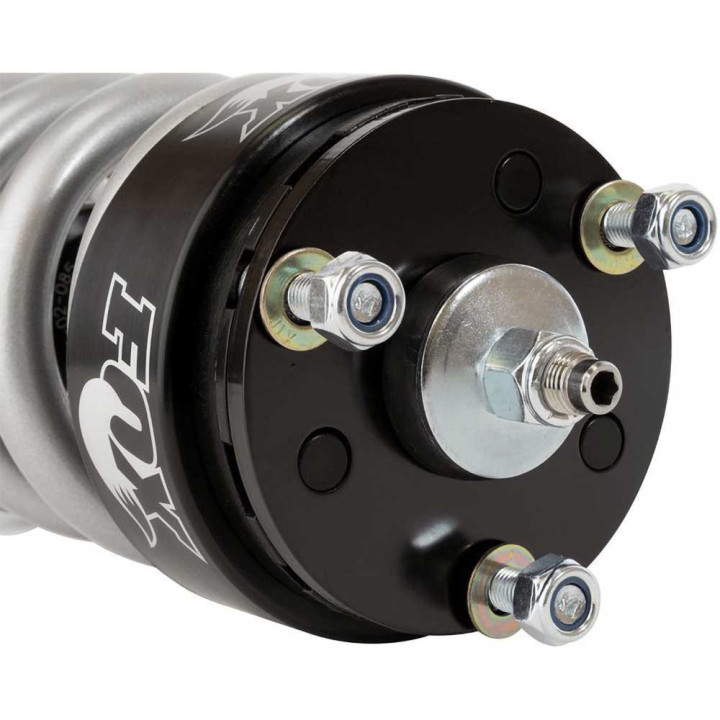

• Top mount: oem
• Bottom mount: bar pin

Notes:

• When adjusting shock height for a lift over 2”, the installation of extended front upper control arms is recommended
