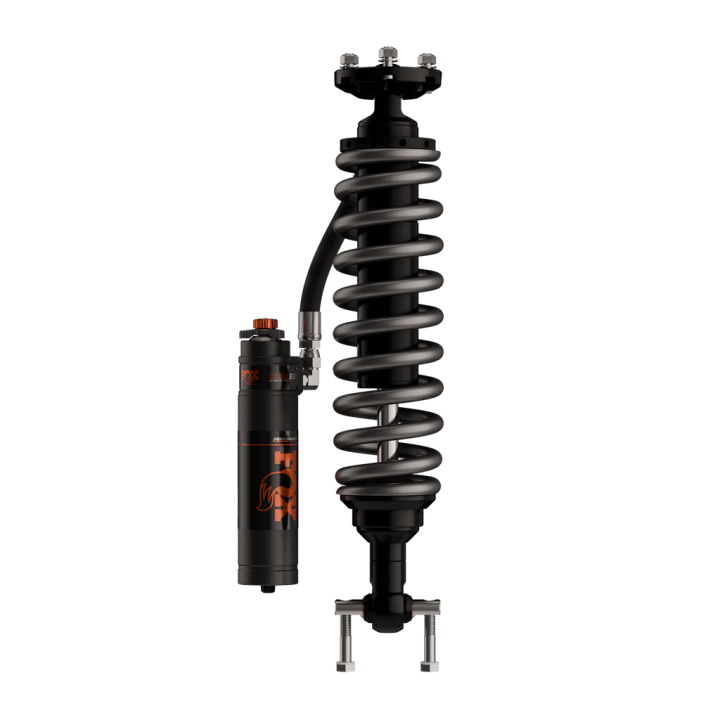

Front Nitro Coilover, FOX Factory Performance Elite 2.5 Reservoir adjustable DSC EVO Lift 0-3 Inch, Ford Ranger 2023 - Present

• Body: 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
• External reservoir with DSC Evo Adjuster for high- and low-speed adjust
• Adjustable spring
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: (22.23 mm / 7/8") hard chromed steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal

Dimensions:

• Extended: 21.87"
• Compressed: 16.64"
• Travel: 5.23"

Mounts:

• Top mount: oem
• Bottom mount: barpin

Notes:

• When adjusting shock height for a lift over 2”, the installation of extended front upper control arms is recommended
