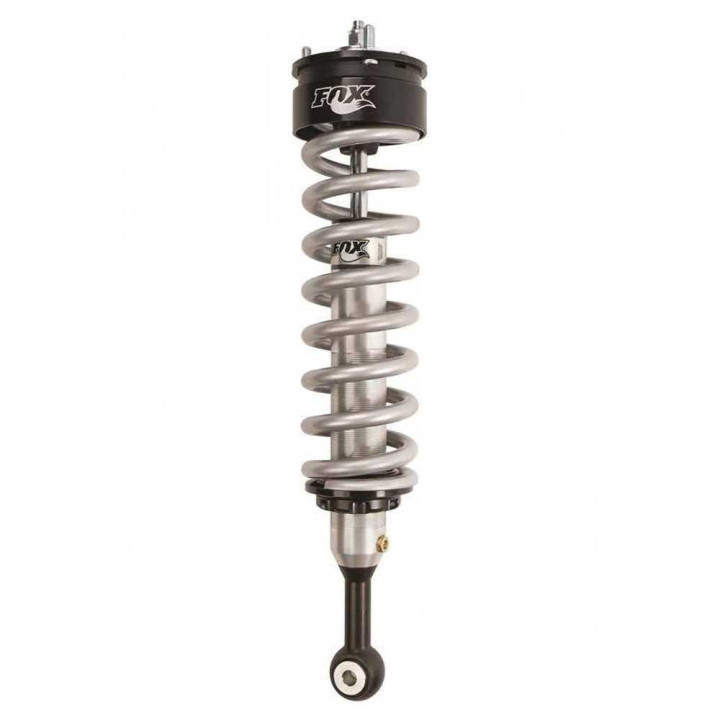

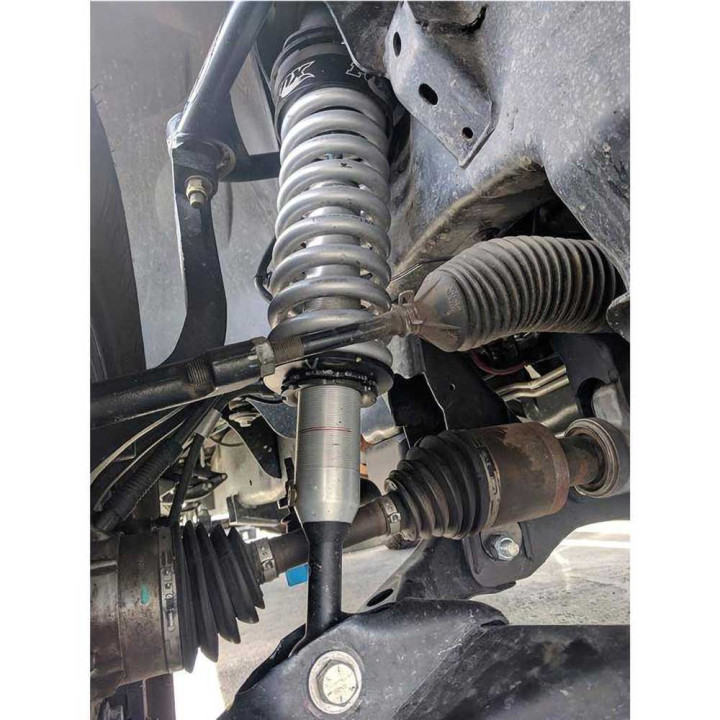

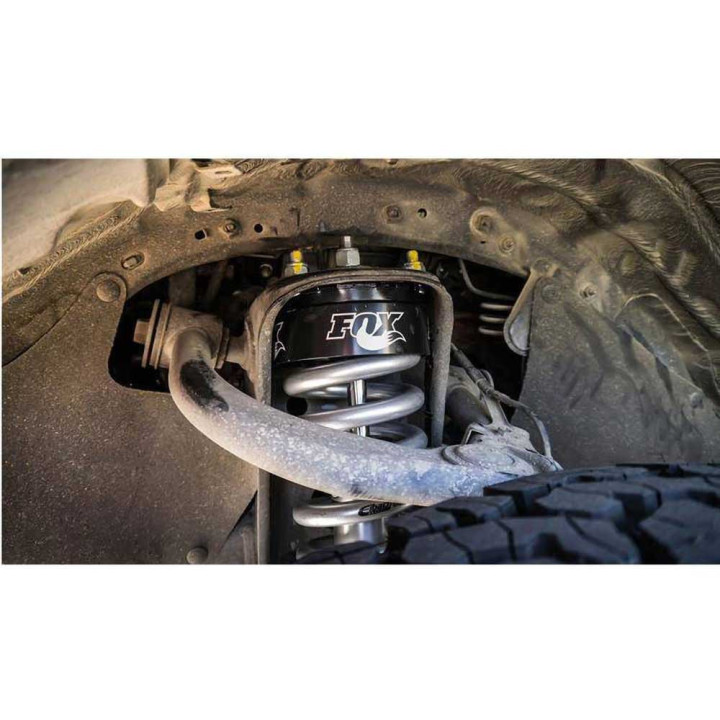

Front Nitro Coilover, FOX Factory Performance 2.0 IFP Lift 0-2 Inch, Isuzu D-Max 2011 - 2017

• Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Body Plating: Clear-anodized for a durable finish
• Internal IFP mono-tube design
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bearing: Large diameter, heavy-duty spherical
• Adjustments: Ride height preload ring

Dimensions:

• Extended: 19.34"
• Compressed: 14.20"
• Travel: 5.14"

Mounts:

• Top mount: oem
• Bottom mount: eyelet
