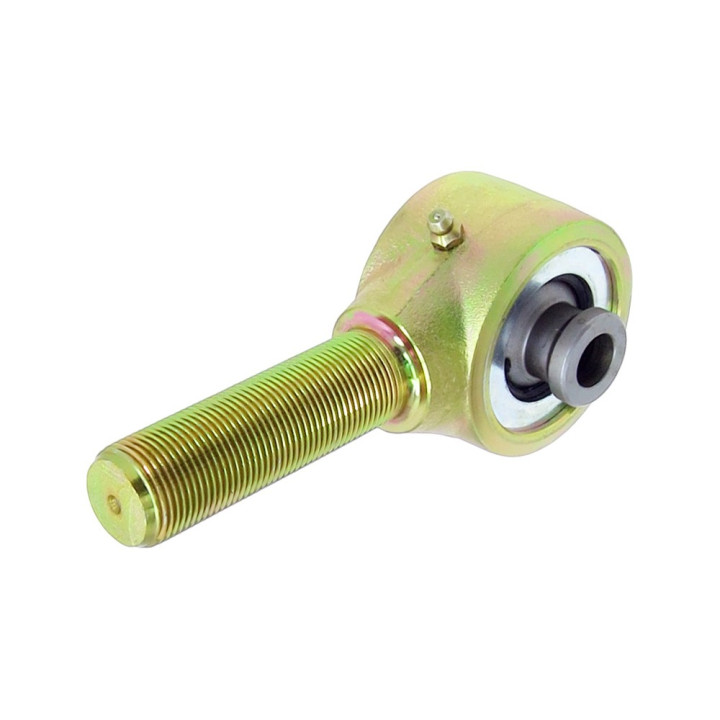

Forged Narrow Rod End with 2.5 Inch Johnny Joint - 1 Inch 14 RH Thread, 2.625 Inch X 0.640 Pivot Ball, Clayton Off Road, Jeep Gl

Articulation angle: Up to 39°, allowing flexible movement in demanding applications Material: Durable forged steel construction for high strength and long life Outer barrel size: 2 1/2 inch / 6,35 cm (outer diameter) × 1.69 inch / 4,29 cm (width) Thread: 3.25 inch / 8,26 cm of 1 inch – 14 RH (right-hand) threads Overall length (center to end): 4.94 inches / 12,55 cm from the center line (CL) of the joint to the end of the threads Internal construction: One-piece bushing design for improved strength and reliability Pivot ball size: 2.625 inch / 6,67 cm (width) × 0.640 inch / 1,63 cm (through-hole diameter) Lubrication: Equipped with a zerk fitting, making greasing quick and easy Installation: Fully assembled – ready for use right out of the box Dimensions: Thread: 1"-14 Width: 2,625" / 6
