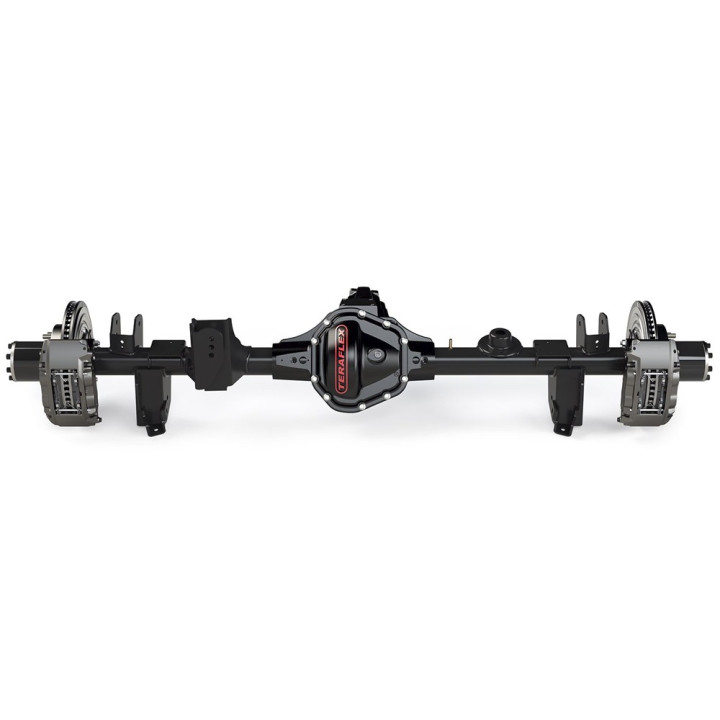

Rear Axle, TeraFlex CRD60 Full-Float Lift 0-6 Inch, Jeep Wrangler 2018 - Present

Extreme duty full-float design 3,25" O.D. x 0,375" wall DOM axle tube for superior strength vs. weight 70" WMS-WMS and 8x6.5" wheel bolt pattern Fixed spindle mount hub assembly Tera CRD60 specific high-pinion rear axle housing design Includes 1350 series pinion yoke 35-spline inner and outer axle shafts HD bearing caps increase rigidity and reduce ring & pinion distortion Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle Built-in skimmer" cuts ring gear oil halo and forces it into the pinion bearings Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing Oversized outer pinion bearing handles increased torque and high-load conditions High-capacity housing holds maximum amount of oil Pre-installed in
