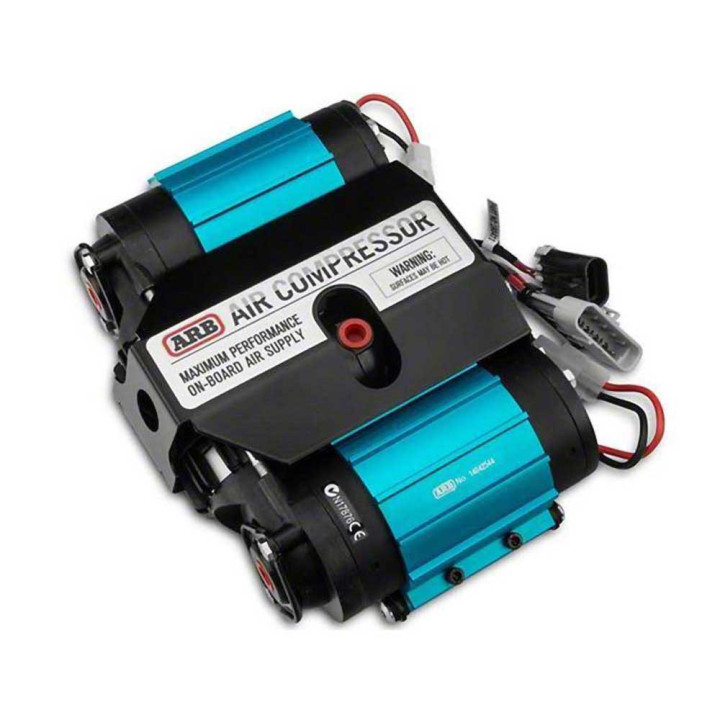

On-board Air Compressor CKMTA24 24V, ARB

• Overload protection in harness: yes
• Overhead protection of compressor engine: yes
• Weight: 8.8 kg
• Power supply: 24 V
• Power consumption:
  • no load: 14.2 A
  • under load: 25.2 A
• Efficiency:
  • no load: 174.4 l / min.
  • under load: (at 200kPa) 131.8 l / min.
• Efficiency duty cycle: 100%

Dimensions:

•  (H x L x W): 105 x 278 x 190 [mm]

Notes:

• Kit with reservoir (ARB171503, sold separately) is necessary to properly control air lockers, remote air adjustable shocks, or other air devices which will be mounted to air compressor
• In case of replacement of old compressor (CKxx series) on CKMTA, old harness will be compatible with new compressor
