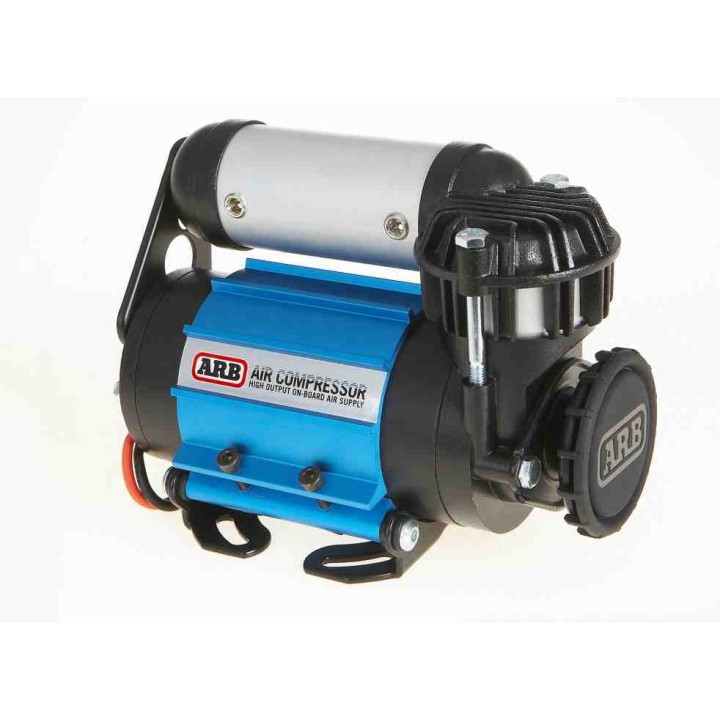

Differential Lock Compressor, ARB, Suzuki Jimny 2018 - Present

Model: CKMA12
Required voltage: 12 V
Operating power without back pressure:
current consumption: 14,2 A
Ventilation pressure at 0 BAR: 87,2 LPM
Air pressure at 0 PSI: 3.08 CFM
Working capacity with back pressure:
Power consumption: 25.2 A
Air flow rate at 2 BAR: 65.9 LPM
Airflow at 29 PSI: 2.34 CFM
Weight: 4.5 kg / 9.9 Lbs
Duty cycle % at 22°C: 50%
Duty cycle in minutes: 30/30
Size (height x width x length): 142mm x 190mm x 96mm
Fuse included in cable set: Yes
Connection point for AIR Locker solenoid valve: Yes
Overpressure switch: Yes
Robust carrying case: No
Fitted with air filter: Yes
Tyre inflation hose: optionally available*{2-9992} optional erhältlich*{2-9992}
Thermal overload protection: Yes
