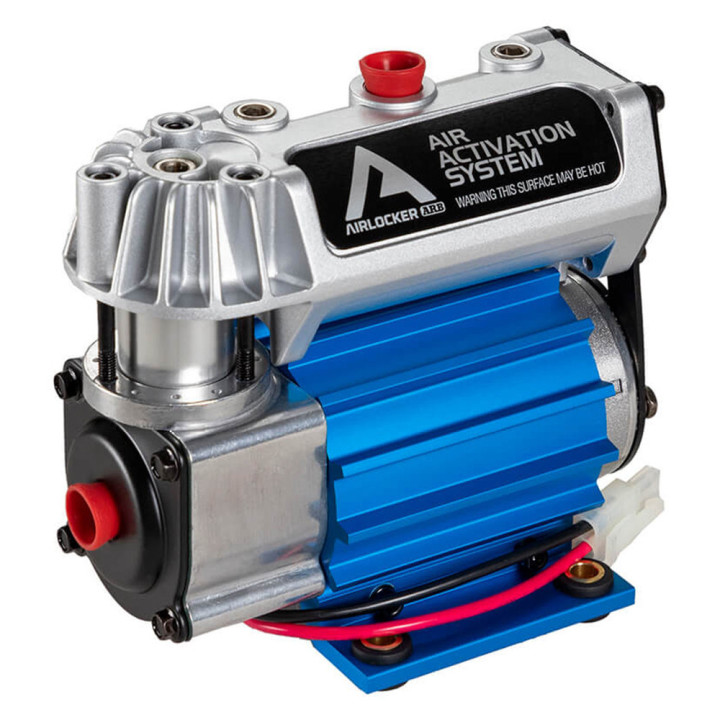

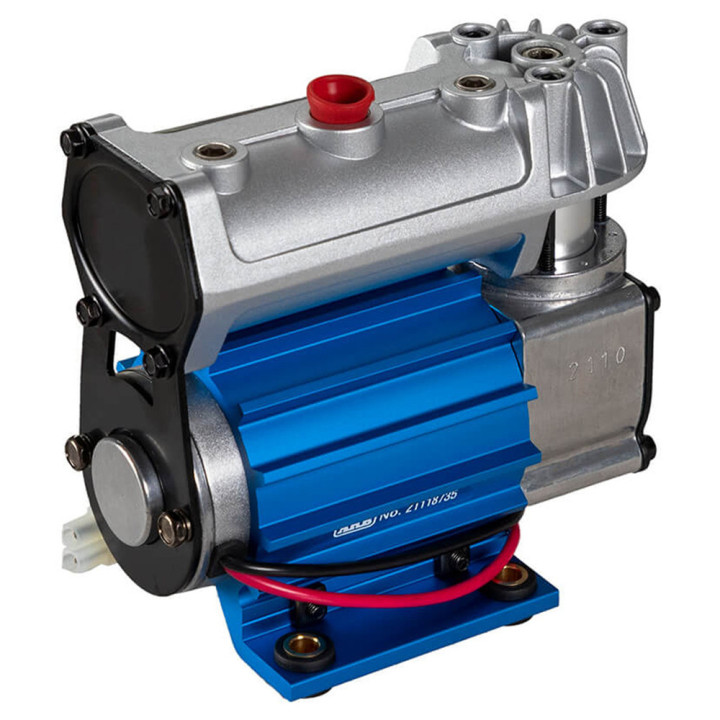

Air Compressor, ARB CKSA12

• Allows quick inflation of tyres or other off-road accessories
• Mainly used for activating ARB interlocks

Specs:

• Supply voltage: 12 V
• Current draw:
  • No load: 5,5 A
  • with load: 7,5 A
• Air flow:
  • no load: 27,7 l/min
  • with load (at 200kPa) 19,7 l/min
• Duty cycle: 35%
• Weight: 2,4 kg

Dimensions:

• Height: 122 mm
• Length: 162 mm
• Width: 88 mm

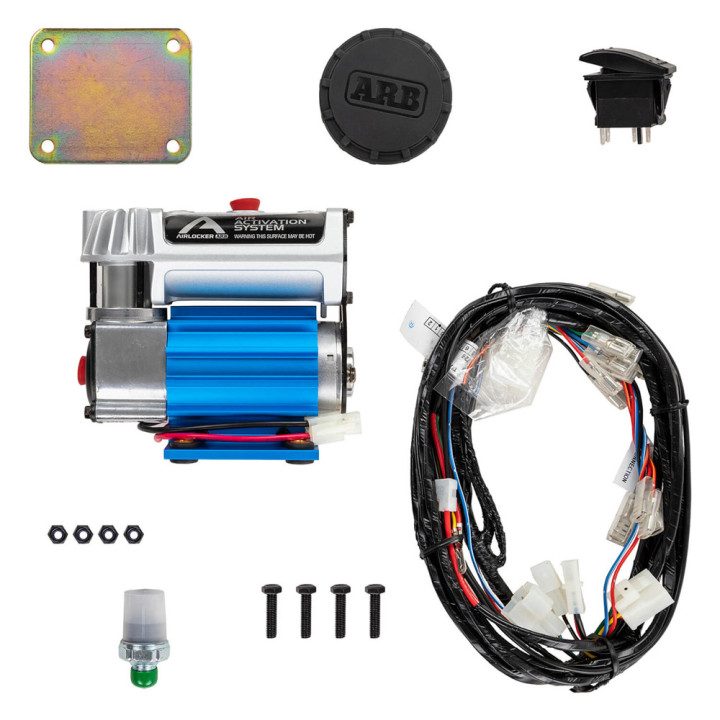

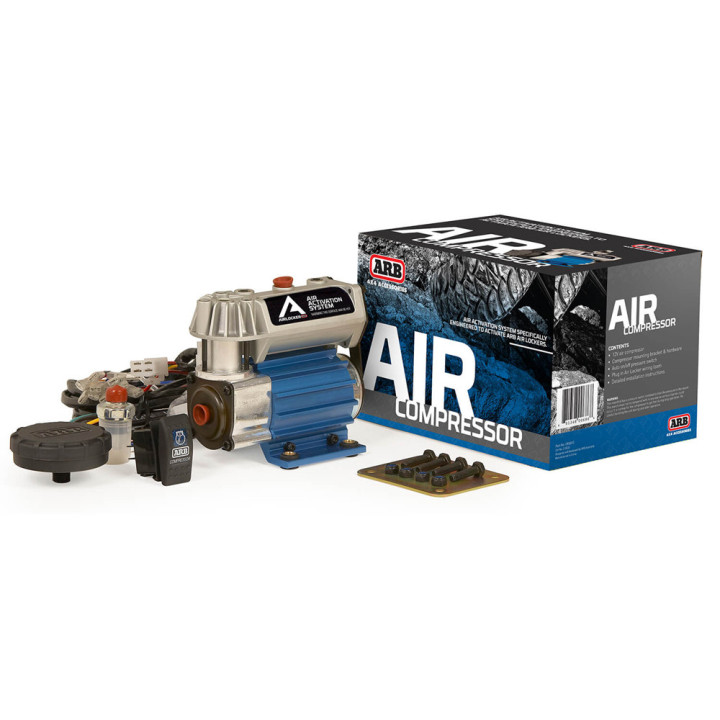

In the box:

• Air compressor
• Mounting bracket
• Pressure switch
• Electrical switch for the vehicle cab
• Complete electrical harness already adapted for mounting the front and rear air locks
